This project functions as a
simple strobe for driving an LED. The use of an output
transistor allows it to pulse the strobe LED with a current up
Four jumpers provide options
for changing the pulse width, strobe repeat interval and single or double
strobe flash. The programmer ready code has default
timings which are easily customised by editing values in the
PIC's EEPROM at programming time.
This is one of those
applications where it's arguably better than a 555 timer based
solution but in practice you could build it with a 555 timer
faster than you can write the PIC code. However it only
needs the code writing once, I've done that and designed a small
PCB too so away you go.

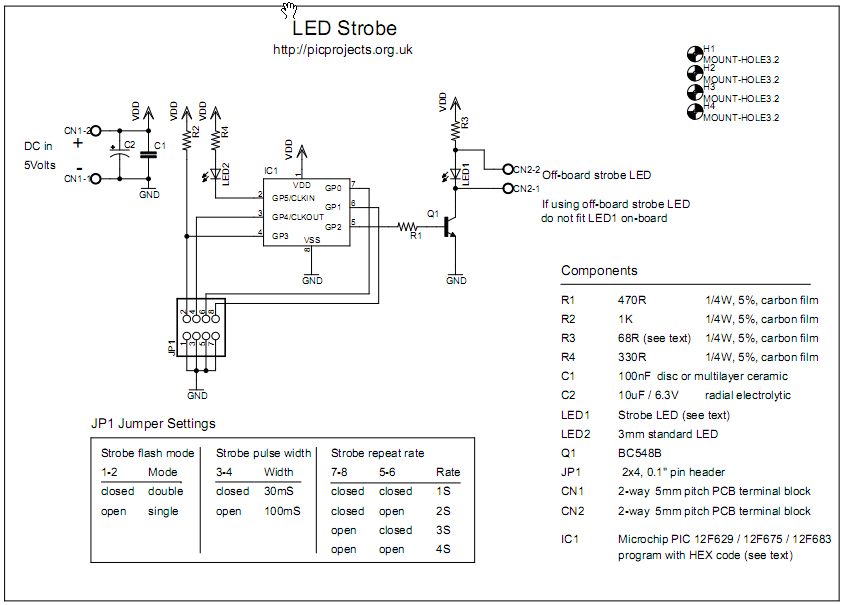

The circuit provides a LED
strobe function with jumper selectable operating modes.
The strobe interval can be
configured using 4 jumpers for 1,2,3 or 4 seconds; strobe on time of 30mS or
100mS and single or double strobe pulse.
Since the PIC can only supply
25mA from its I/O pin a transistor is used to increase the
maximum current driven through the LED. This transistor
has a maximum collector current of 100mA which is adequate for
driving most types of 5mm LEDs. The PIC could be used to
control a higher powered output switch if desired.
The value of R3 series current
limiting resistor for
the strobe LED has
been selected on the conservative side rather than providing maximum brightness.
With a 5 volt supply and LED with 1.8V forward voltage yields
current of approximately 47mA.

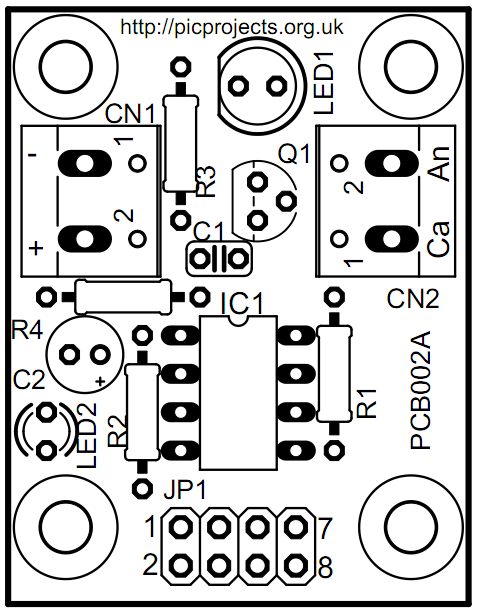

The strobe LED can either be
installed on the PCB in position LED1 or off-board via connector
CN2. If the off-board option is used do not install a LED
into position LED1 on the PCB.
LED2 is a monitor LED, if the
off-board strobe LED is used, this LED can be useful for
monitoring the operation of the circuit. If you don't want
this option, just omit LED2 and R4.
Capacitor C1 is used to
decouple the 5 volt power supply rail. If you are building the
circuit on a breadboard or stripboard you should ensure it is
located close to the PICs Vdd connection (pin 1).
The input voltage must not
exceed 5 volts. It can run from as low as 3 volts but you
will need to modify the Strobe LED resistor value. Also be
aware of the LED forward voltage; some high brightness LEDs and
in particular white LEDs and some blue and green LEDs have forward voltages in excess of 3

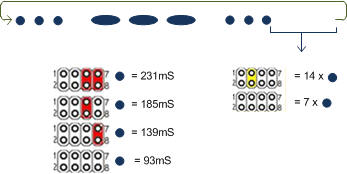

The operating modes are
selected by using jumper block JP1. If you are building
the strobe for a specific application you may want to hardwire
inputs to ground as required rather than fit the jumper pin
Obviously we want the strobe
LED to be as bright as possible. It is important that the
series resistor R3 is chosen so that the LED current does not
exceed the manufacturers rating. Since different LEDs have
different maximum forward current and voltage ratings you must
select this resistor to suit the specific LED you are using.
For other LEDs you can use this
site to calculate the resistor needed
http://led.linear1.org/1led.wiz When you go to this
site it asks for the source voltage. This will be 5 volts,
or if you've used batteries to power the strobe, the total
battery voltage. Also note that driver transistor
Q1 is only rated to 100mA so do not exceed this even if the LEDs
The section refers to the
default timings used in the programmer ready firmware download.
The pulse width, interval and
strobe mode are user selectable using the JP1 jumper block.

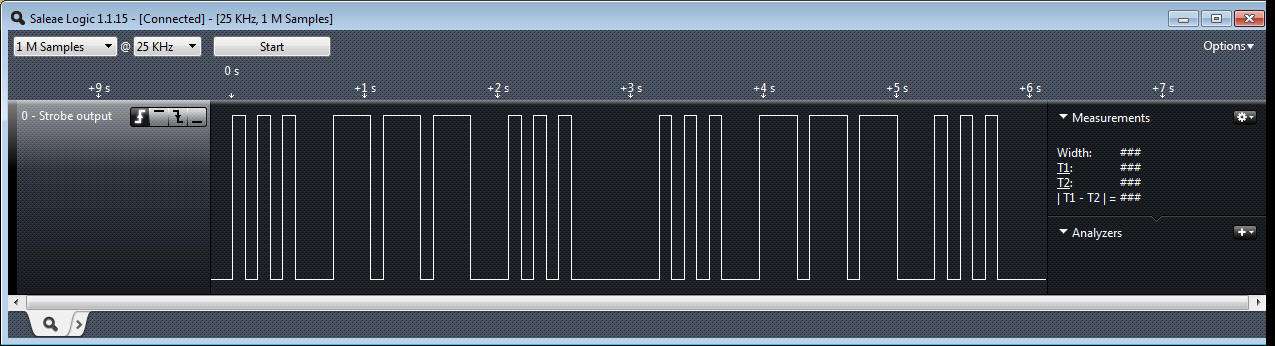

There are two strobe modes, single and double pulse. The
double mode has a (default) 175mS off-time between the two pulses.

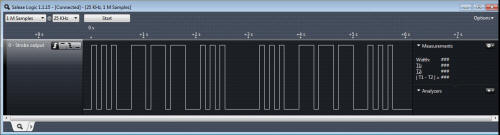

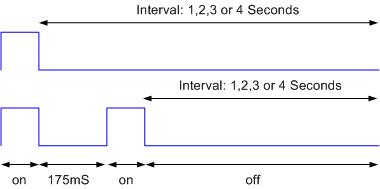

As shown in the diagram below, the interval is measured from the
end of one pulse group to the start of the next group.
The timers for the pulse width,
interval and double mode gap are all configurable by editing the
values in the PICs EEPROM before writing the HEX into the PIC.
This is nice and easy to do and doesn't require reassembling the
code or anything complicated. Just load the HEX file from
the firmware download section into your programmer application.

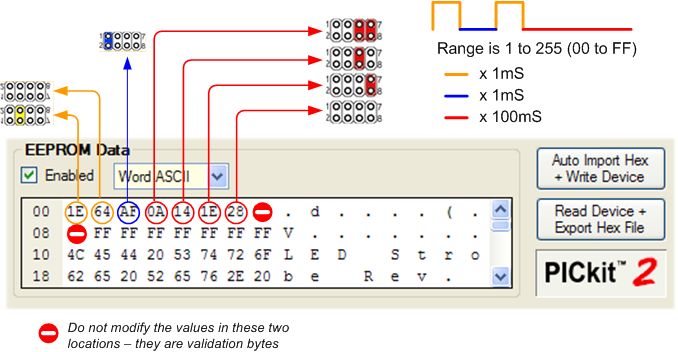

Edit the values in the EEPROM as shown below and then write the
code and EEPROM data into the PIC.
Suppose you want a pulse width
of 40mS (40 x 1mS) and an interval of 1.3 Seconds (13 x 100mS) you would
the data in address 00 to 28 (40 decimal == 28
hexadecimal). For the 1.3 second interval change the data
in address 03 to 0D (13 decimal == 0D hexadecimal).
Values shown in the example
above are the default values in the firmware download. If
you don't modify them it will uses these timings.
Converting decimal values to
hexadecimal Depending on your programmer
the values you need to enter will probably be in hexadecimal, easiest way to
convert decimal values to hexadecimal is Google, see example
below. The prefix 0x in the result simply tells us the
value is in hexadecimal (hex for short).
You can buy all the parts
needed to build this project from most component suppliers world
wide. In the UK you can get everything from Rapid Online and
I've included a parts list with their part numbers below.
Rapid parts/descriptions correct at 30 January 2009. You should
check part# and descriptions are correct when ordering in case
I've made a mistake transferring them onto this page.
PK 100 470R 0.25W CF
PACK 100 1K 0.25W CF
PACK 100 39R 0.25W CF
PK 100 330R 0.25W CF
100N 5MM PITCH CERAMIC
DISC CAPACITOR RC
5M MICROMIN 10UF 16V
BC548B TRANSISTOR TO92
30V NPN (RC)
LED 5MM HB WHITE
L-7104GD MINIATURE 3MM
GREEN LED (RC)
socket for IC1
8 PIN 0.3IN DIL SKT
4+4 WAY DOUBLE ROW
HEADER PLUG RC
2 WAY 16A
PCB TERMINAL BLOCK (RC)
OPEN BLUE 2.54MM
JUMPER LINK (RC)
Parts List Notes
All the resistors are
supplied in packs of 100
* R3 has been selected for
use with the High Brightness white LED used for LED1. On
the schematic it is shown as 68R, but 39R has been chosen for
use with this specific LED. If you use a different LED see
Omit R4 / LED2 if you don't need the monitor LED.
12F629 can also be used
Old PC motherboards, hard
drives etc. often use this type of jumper so you may be able
to salvage some from one of these instead of buying them.

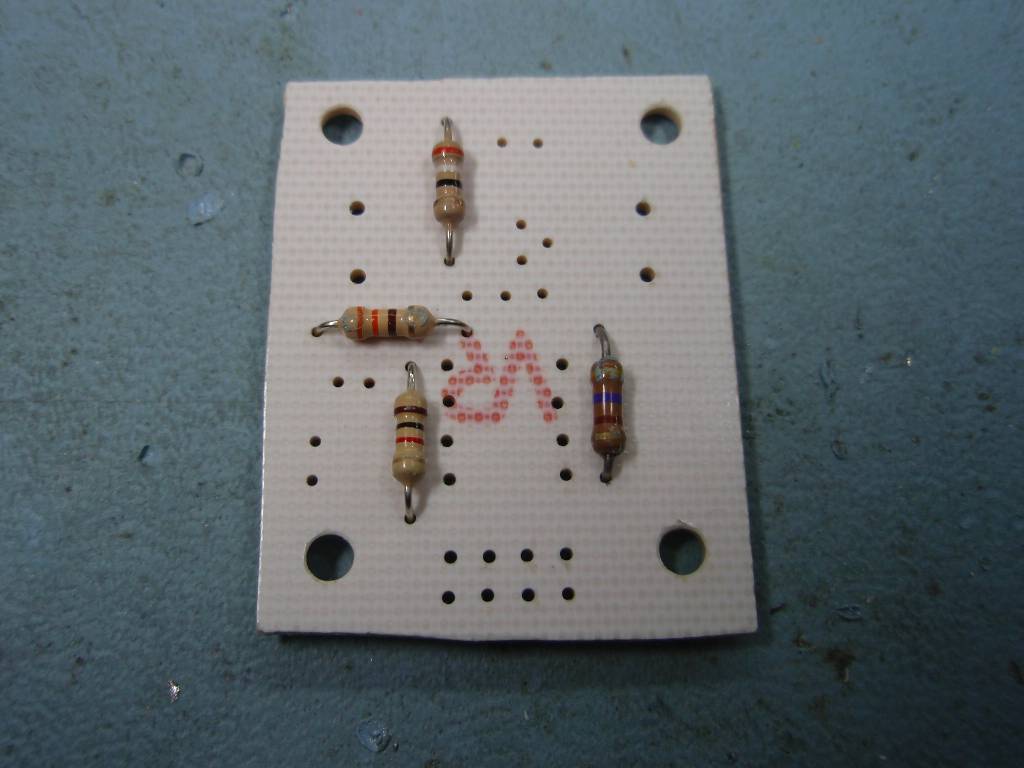

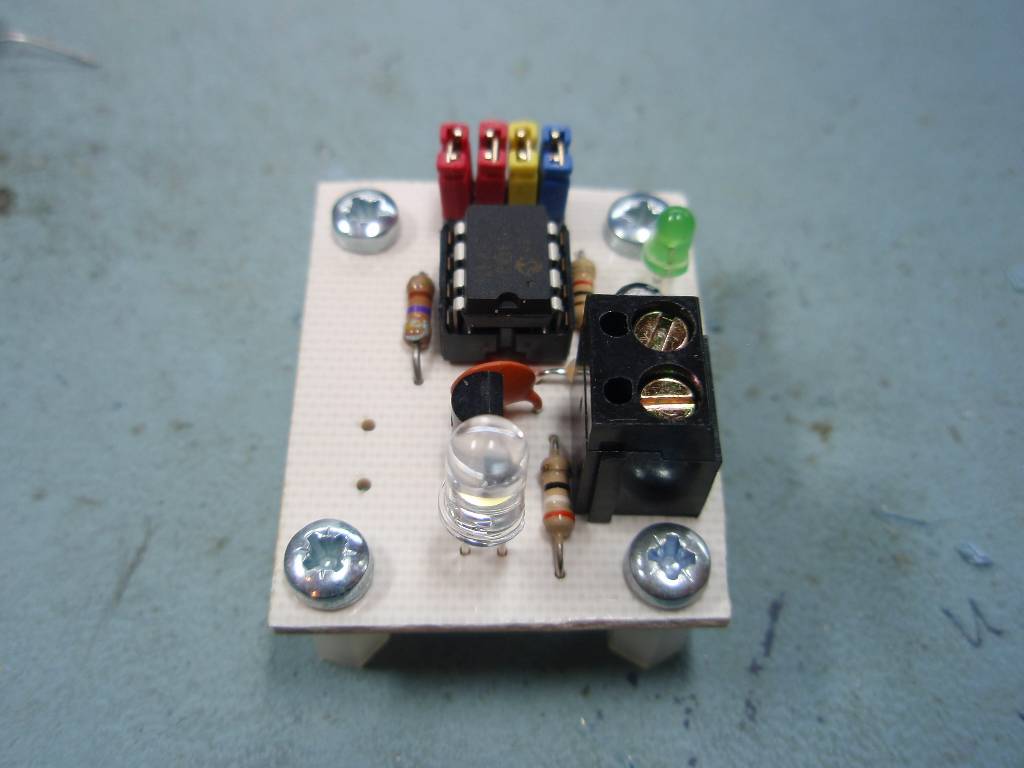

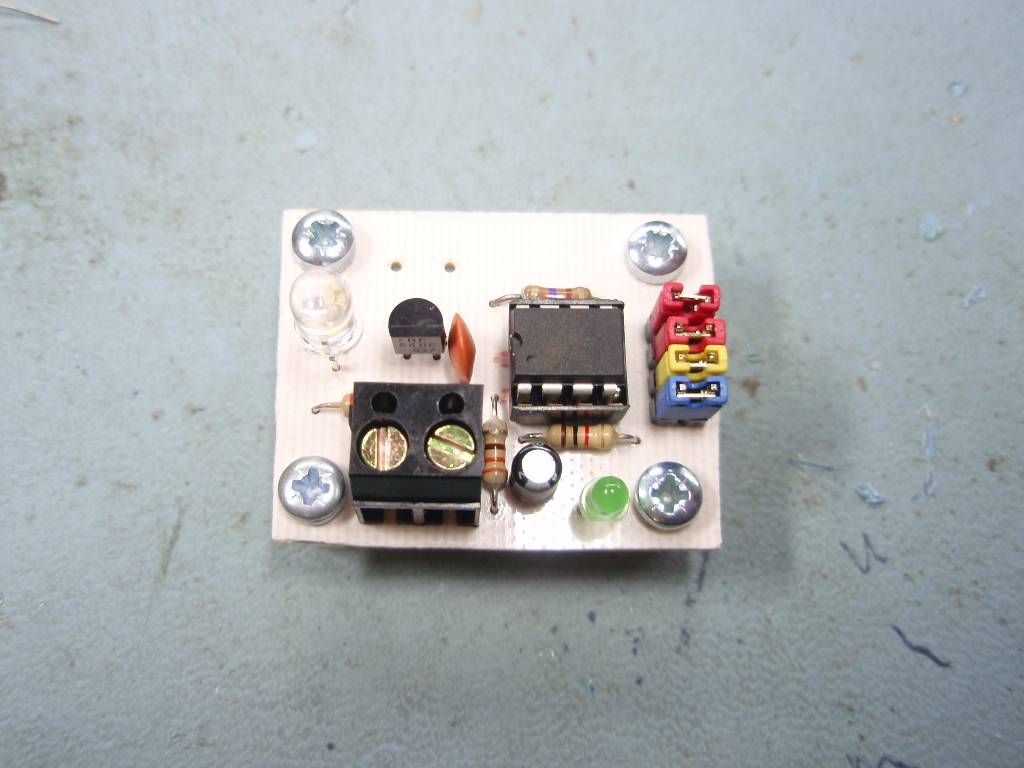

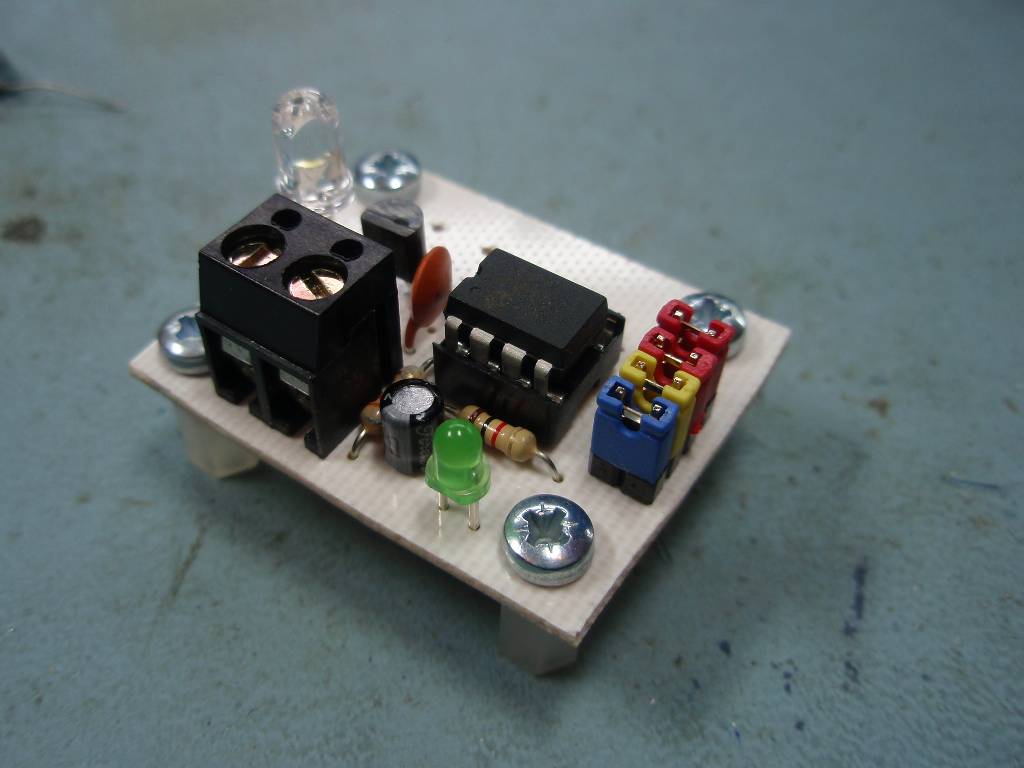

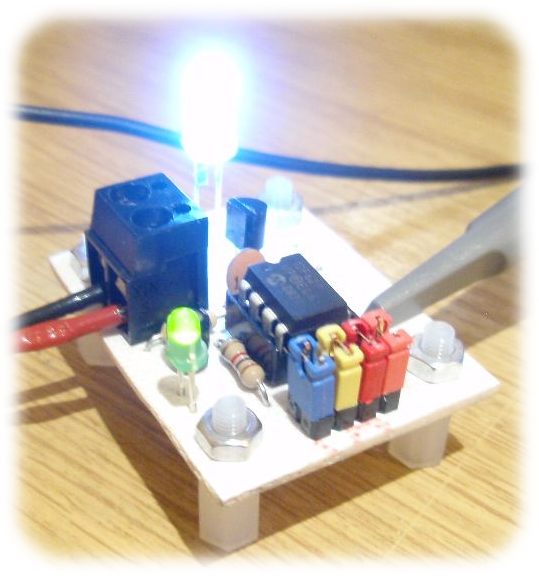

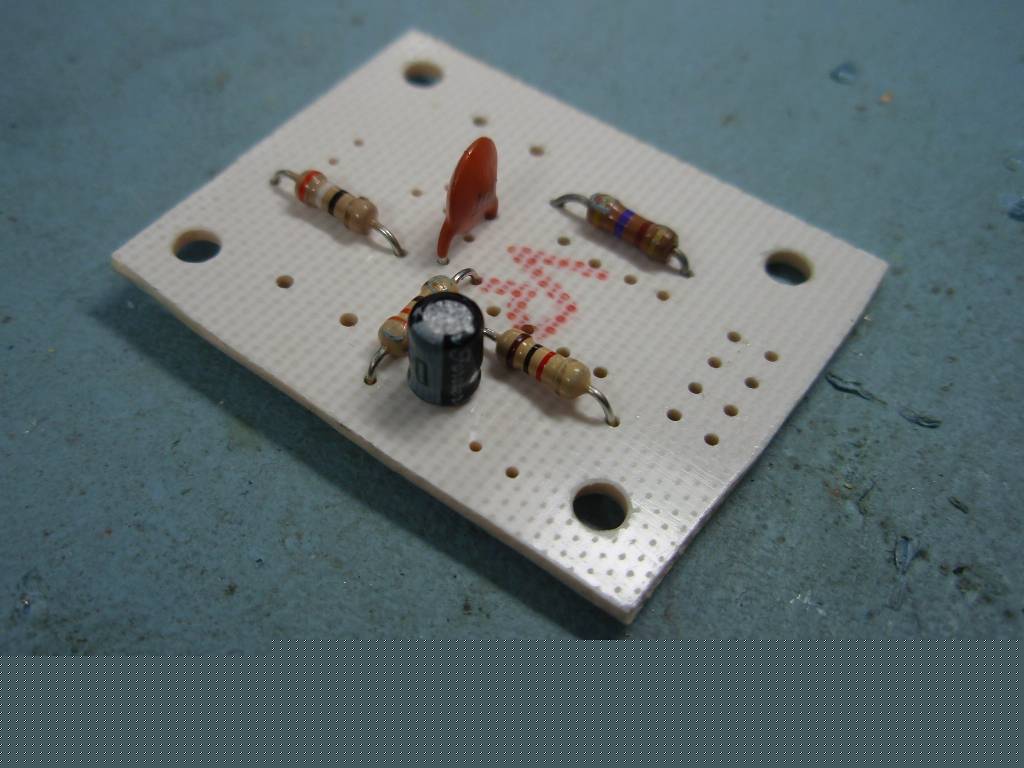

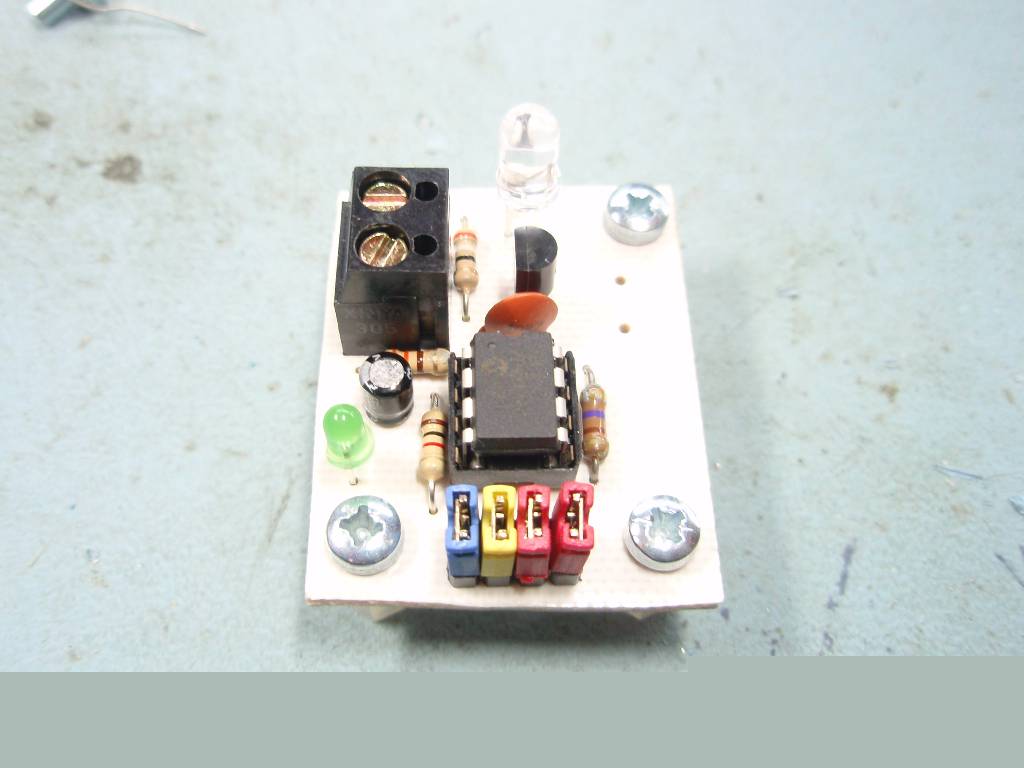

Construction is very
straightforward. Because the strobe LED has been installed
on the PCB, the connector for use with an external LED has not
been fitted in these photos.

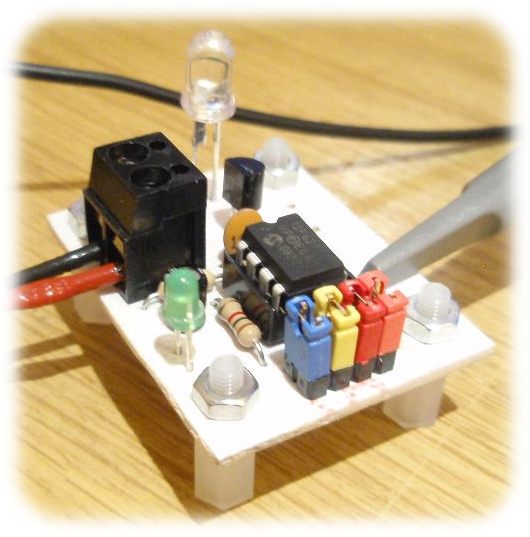

The green monitor LED is
optional; if you fit the strobe LED on the PCB you may want to
The LED Strobe circuit ideally
needs a 5 volt
supply. You could use 3 x 1.5V AA Alkaline batteries or 4 x
1.2V AA NiMH rechargeable batteries for portability. As noted
elsewhere on this page, it can operate at voltages down to 3
volts but the strobe LED series current limiting resistor will
need recalculating. Also some white LEDs cannot operate
from 3 volts, if they do light they are probably not operating
at maximum brightness.
The PIC itself only uses about
2mA when the strobe LED is off, the main current consumption is
when the LED is pulsed on and this will be dependant on the LED
and current limit resistor used.
If the LED outputs blink 3 or 4
times at regular intervals and the jumper settings are
ineffective this indicates one of two fault conditions.
The EEPROM data at addresses 07
and 08 must be 0xA9 and 0x56 respectively. If this is not
correct the 3 blink error code will be shown. You can
correct the error by reprogramming the EEPROM ensuring these
validation bytes are correct.
If the OSCCAL calibration word is
missing the 4 blink error code will be shown. You will
need to recalibrate the PIC using a PICkit2 programmer, or the
recalibration project here
